Station
| 144 MHz | |
|---|---|
| Transceiver | Elecraft K4D |
| Bandpass filter | 2 x DCI 145-2H |
| Transverter | Kuhne TR 144 - PRO and MKU LNC 144 |
| SDR | AFE822x SDR-Net (Dual Channel) |
| Amplifier | ITALAB SSPA |
| Masthead LNA | 2 x HA8ET VLNA-144 24dB gain, 0.25dB NF |
| Antenna | 4 x 12 ele XPOL - GTV 2-12n DG7YBN - full elevation |
| Receive | Horizontal and vertical simultaneous |
| Transmit | Right Hand Circular Polarisation (RHCP) |
RHCP arrangement

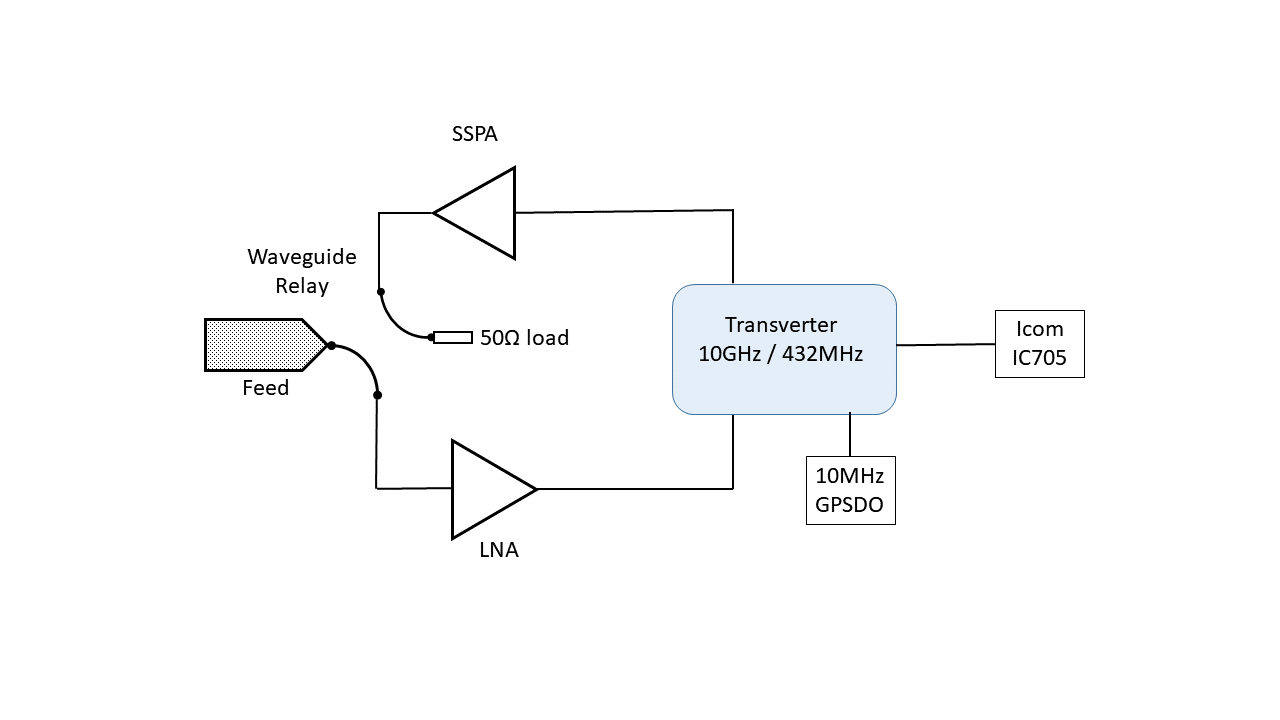

| 10 GHz | |
|---|---|
| Transceiver | Icom IC-705 |
| Transverter | W1GHZ 10368 - 432 MHz home built |
| LNA | DU3T PA0PLY |
| Feed | Linear dual-mode |
| Dish | 1m offset |
| HF | |
|---|---|
| Transceiver | Elecraft K4D |
| Antenna | HyEndFed 5 Band |
